Sony TC-FX25 2-Head Stereo Cassette Deck with Dolby-B Japan 1983

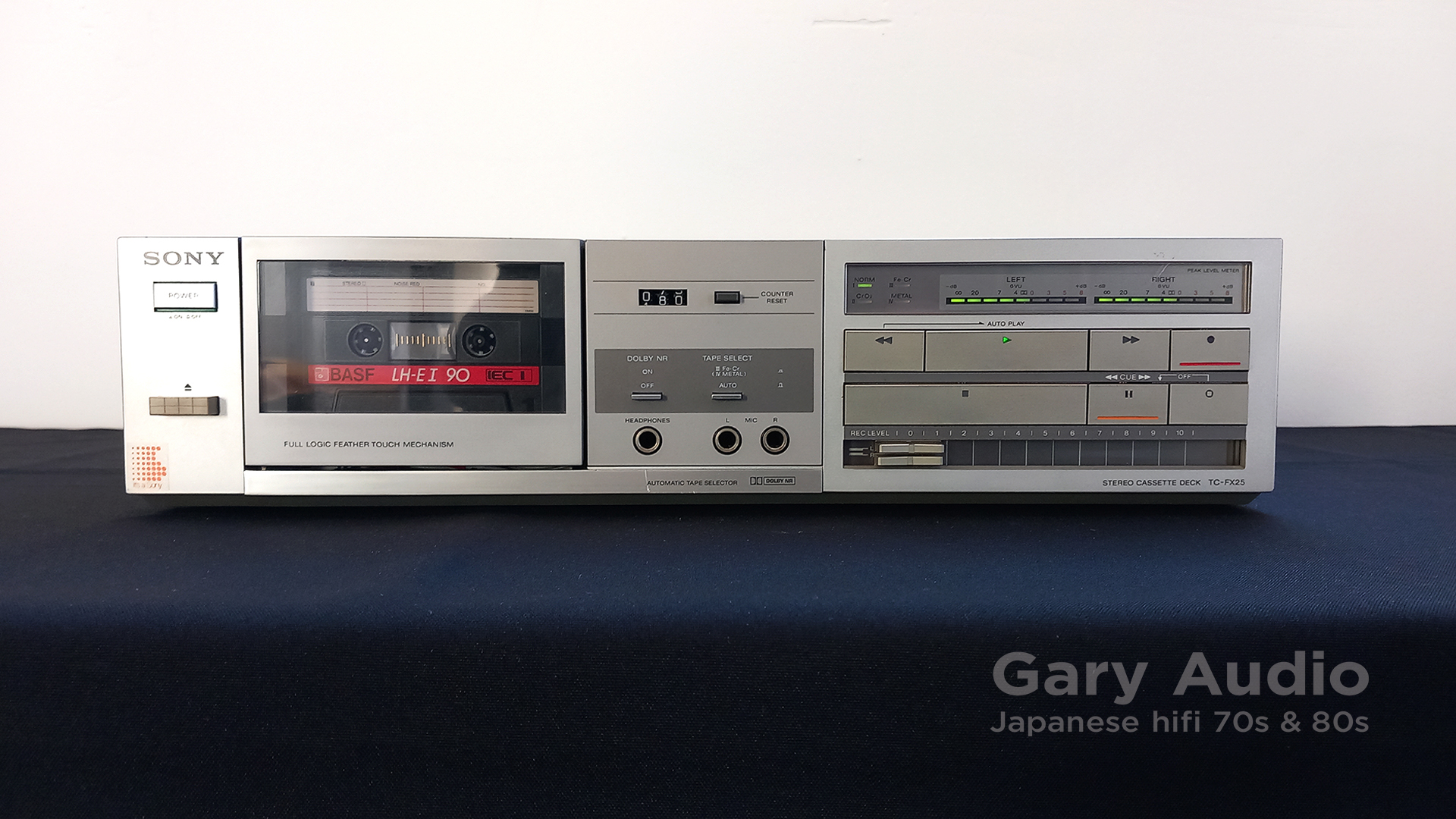

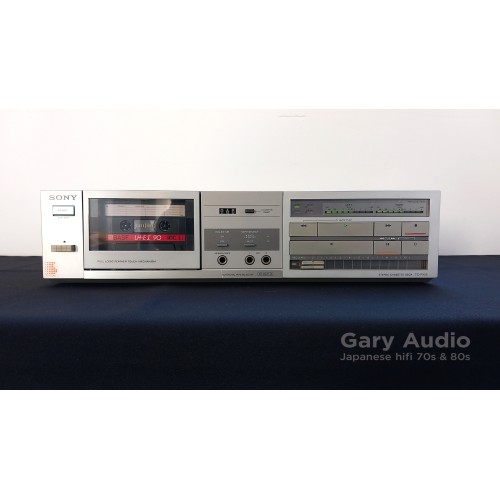

Silk horizontal front panel and simplicity and functionality make the Sony TC-FX25 tape deck a memorable piece from the 80s. The Sony TC-FX25 is known for its classic design, durability, and good sound quality for playback. On the front panel the VU-meter and the recording potentiometers are lined strictly horizontally. Key specifications include stereo Left/Right RCA audio outputs, a headphone jack, and a connection for a microphone. It was manufactured in Japan and has a "full logic feather touch" mechanism. The tape selector differs Type-I, FeCr, CrO2, Metal tapes types.
This is a completely restored, cleaned and tested piece in excellent condition as seen in the photos and in video, all functions work properly.

Specifications
Manufacturer: Sony Corporation, Tokyo, Japan
Model: TC-FX25
Serial No: 501832
Type: 2-Head, Single compact frontloading cassette deck
Years of manufacture: 1983 - 1985
Made in: Japan
Color: Silver
Power consumption: 12 watts
Dimensions: 430 x 105 x 275mm
Weight: 4.2kg

Technical data
Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Tape Type: type I, FeCr, CrO2, Metal
Noise Reduction: Doldy-B
Frequency Response: 20Hz to 17kHz  (Metal tape)
Signal to Noise Ratio: 66dB  (dolby B)
Wow and Flutter: 0.05%
Total Harmonic Distortion: 1.0%
Connectivity
Audio Outputs: Stereo L/R RCA and headphone jack
Audio Inputs: Analog RCA L&R and microphone jacks
Other: Aux connection
Input: 77.5mV (line), 0.25mV (mic)
Output: 0.44V (line)

Special features
“Full logic feather touch" mechanism
Record mute

Tags: Sony, TCFX25, Tape Deck, Cassette Deck, Japan, Vintage
