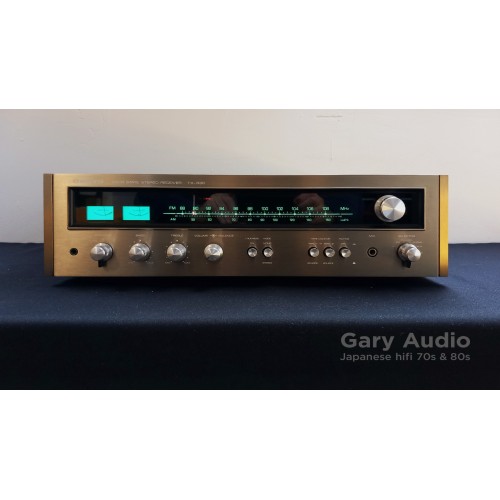

Onkyo TX-330 Solid State Stereo Receiver Japan 1974

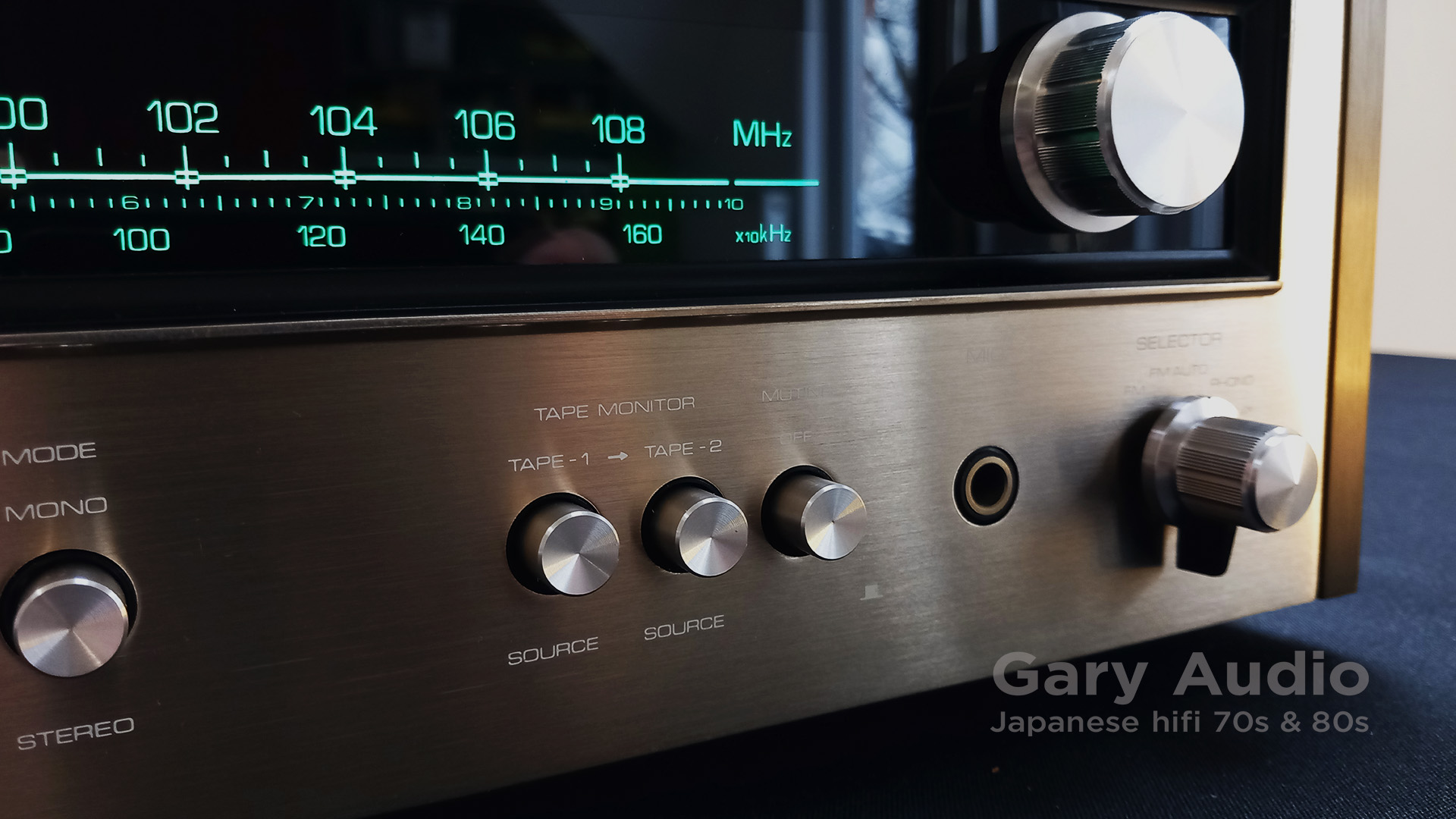

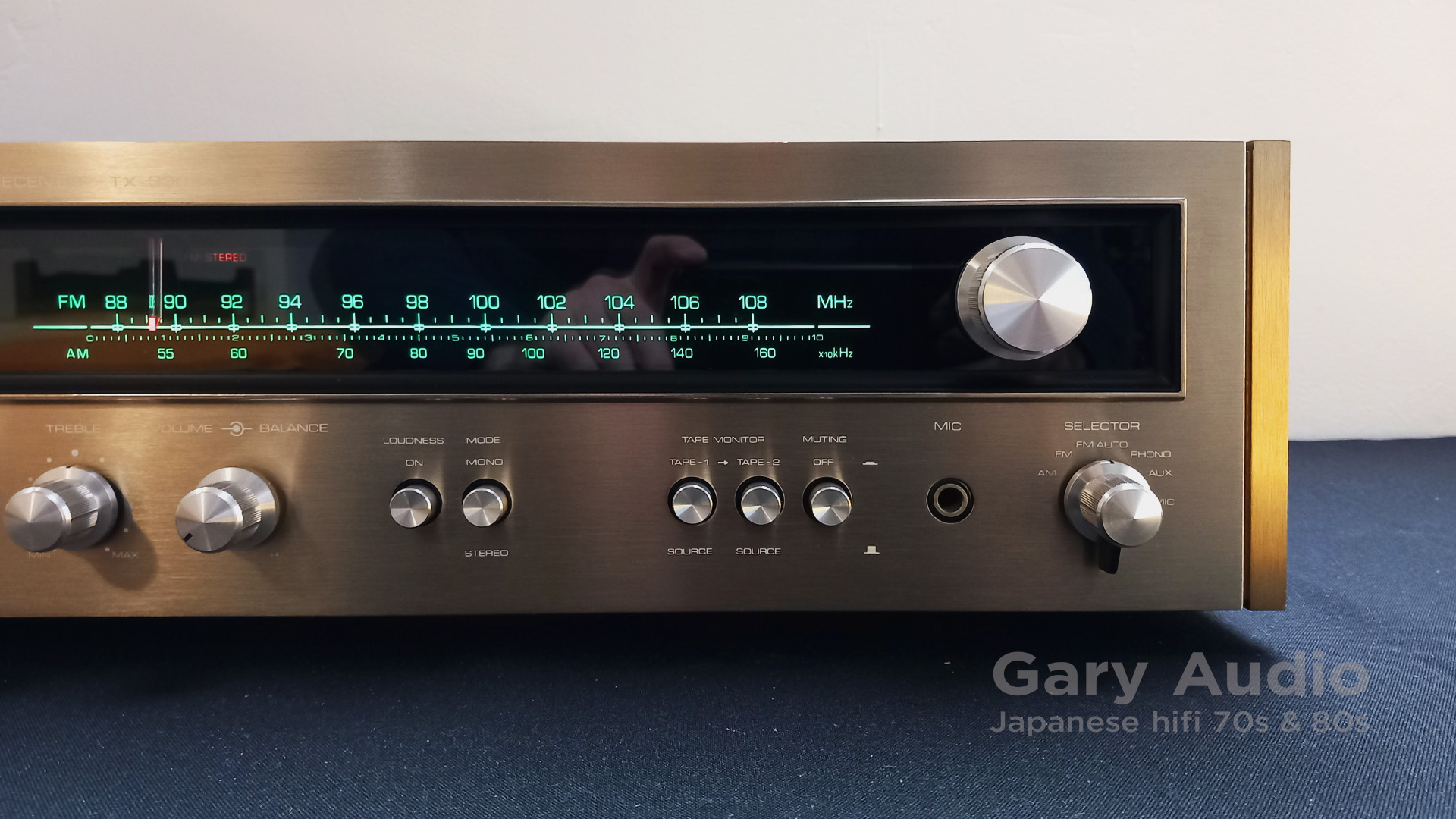

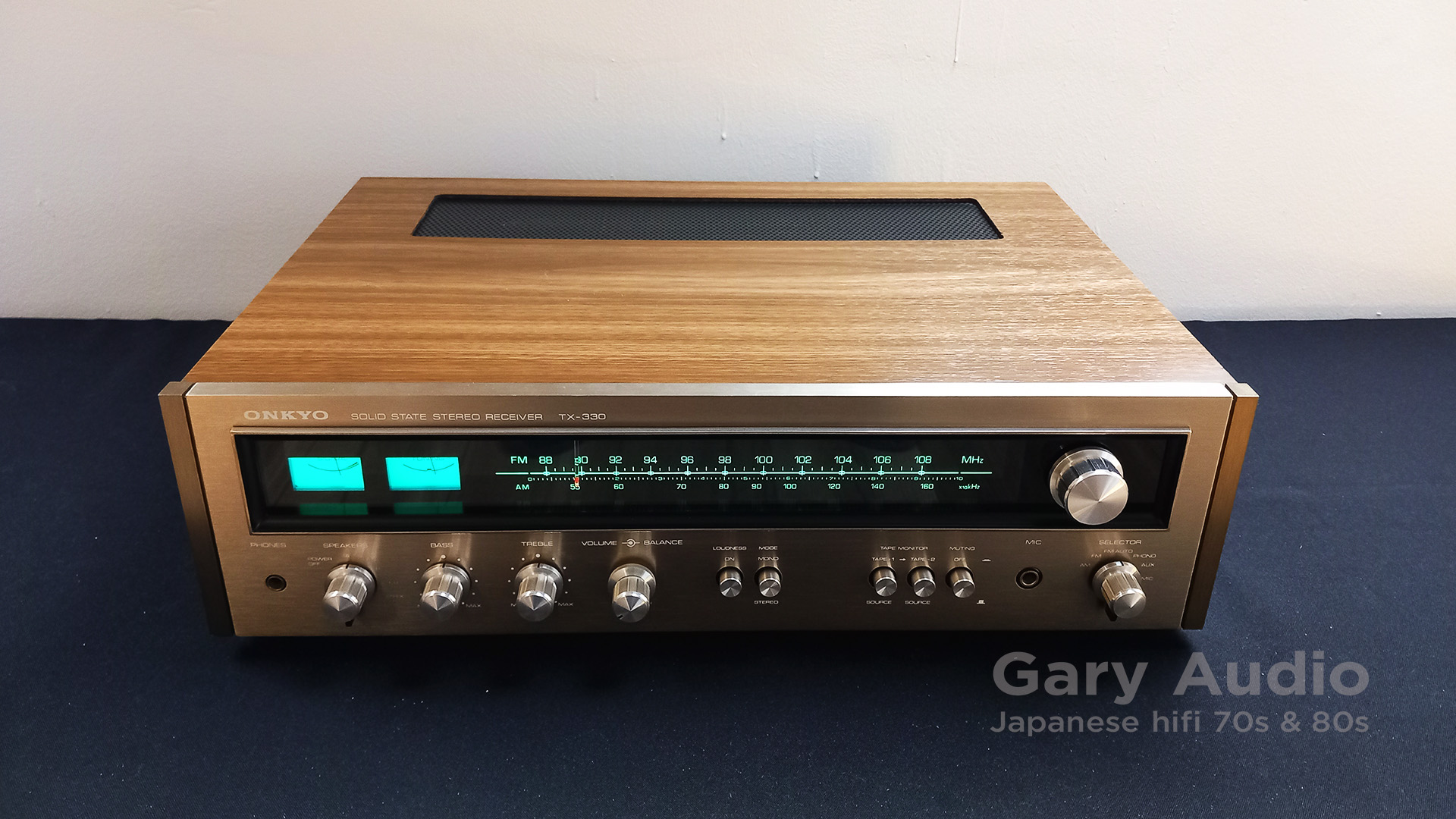

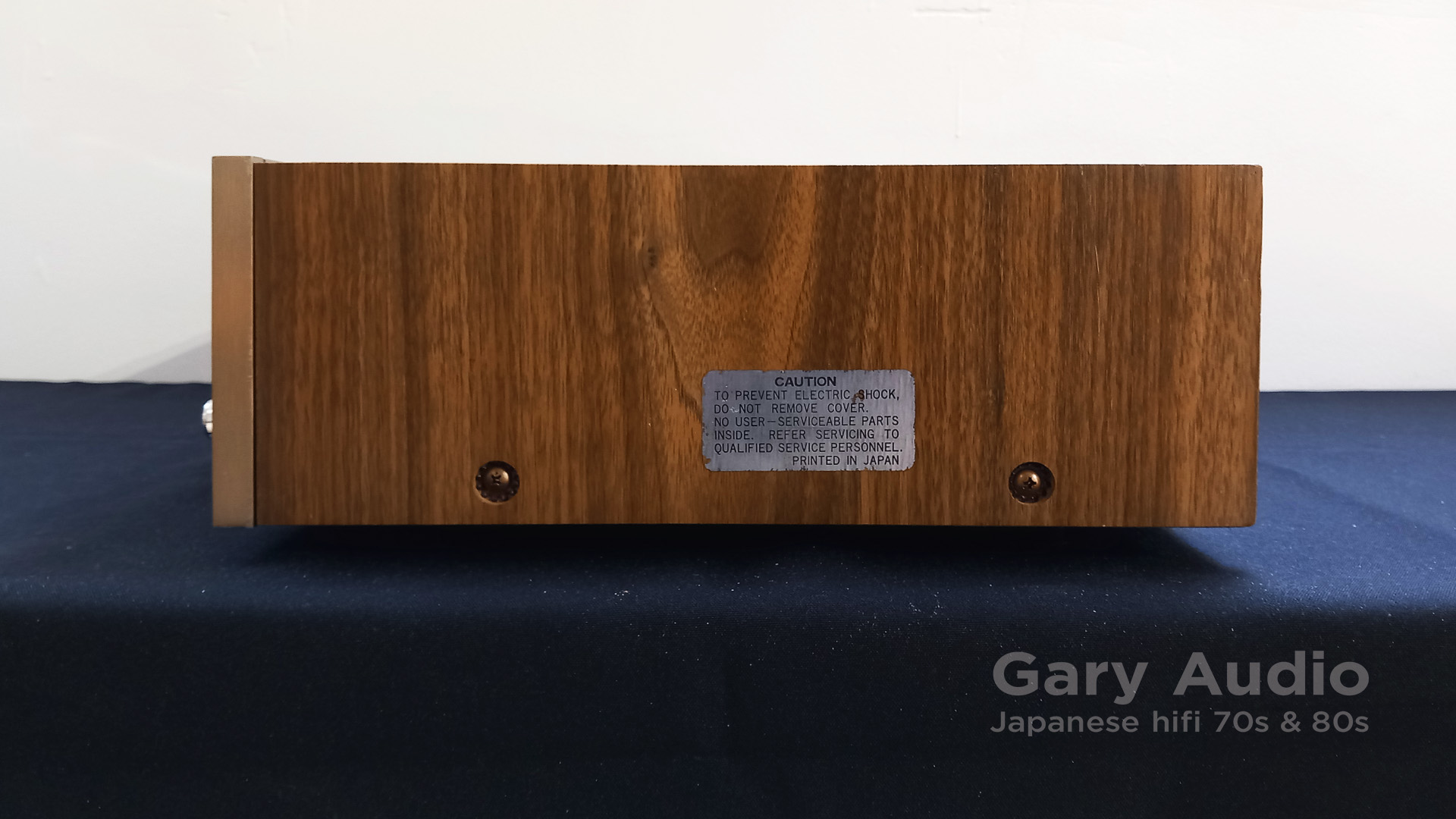

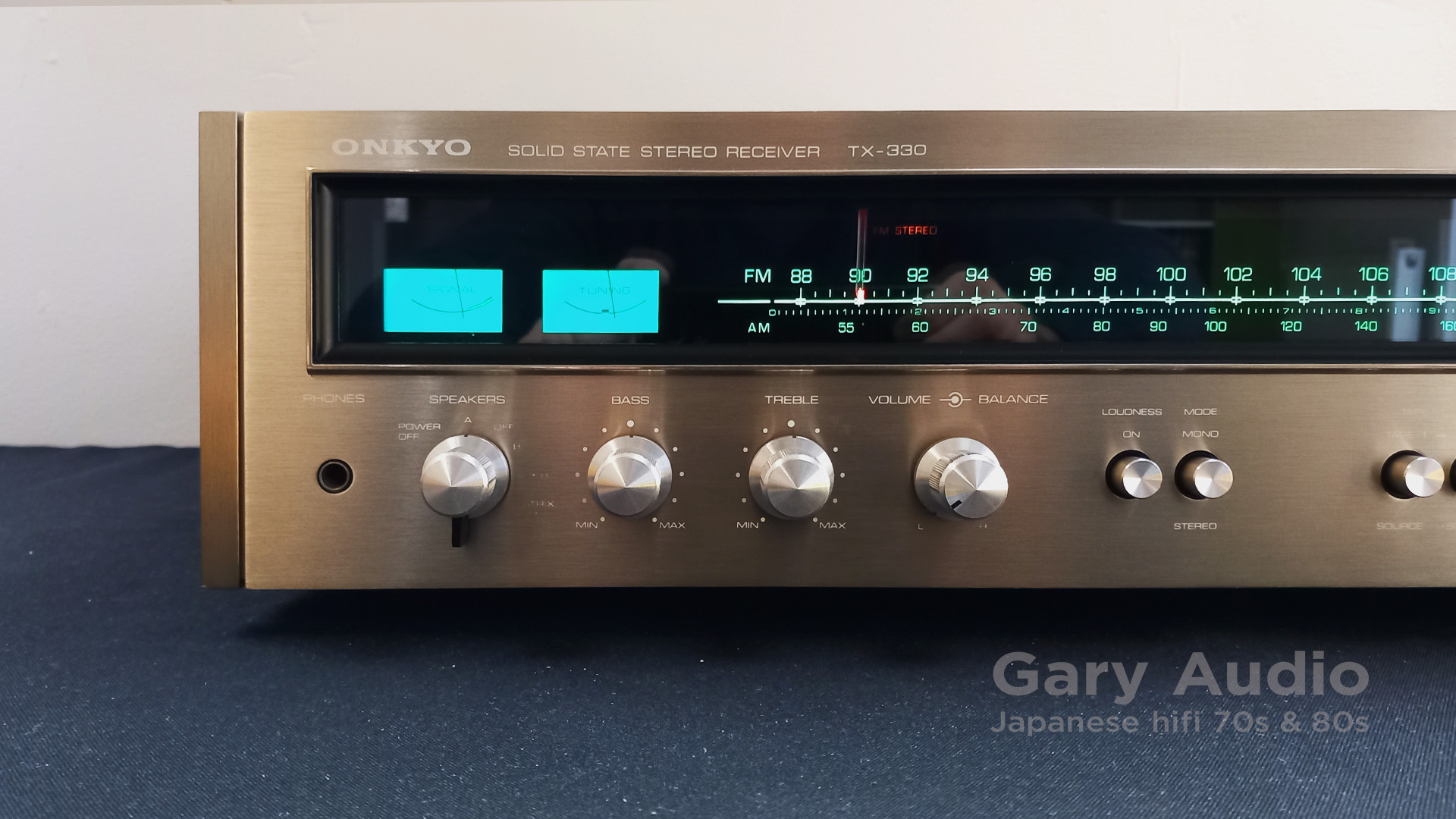

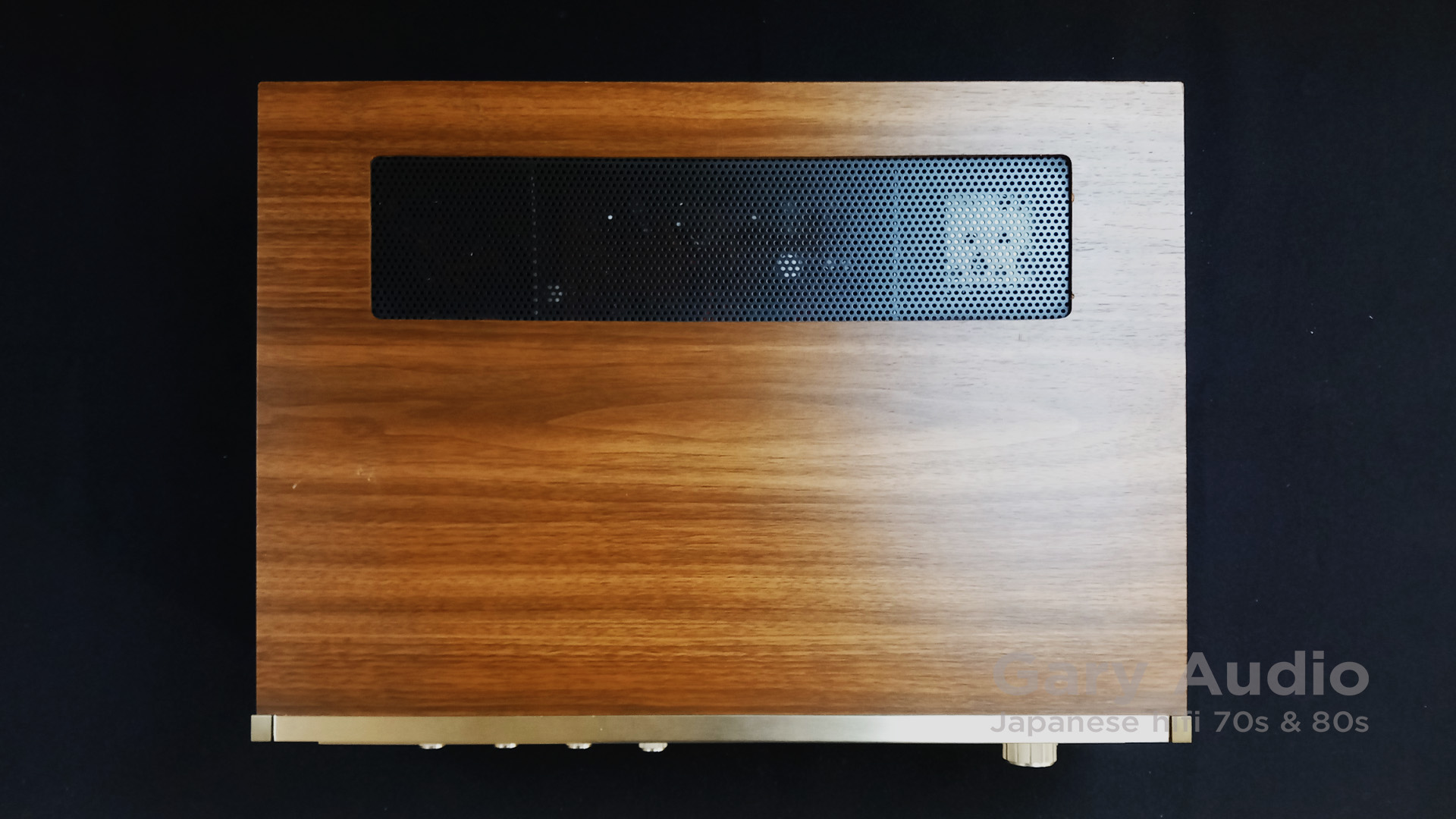

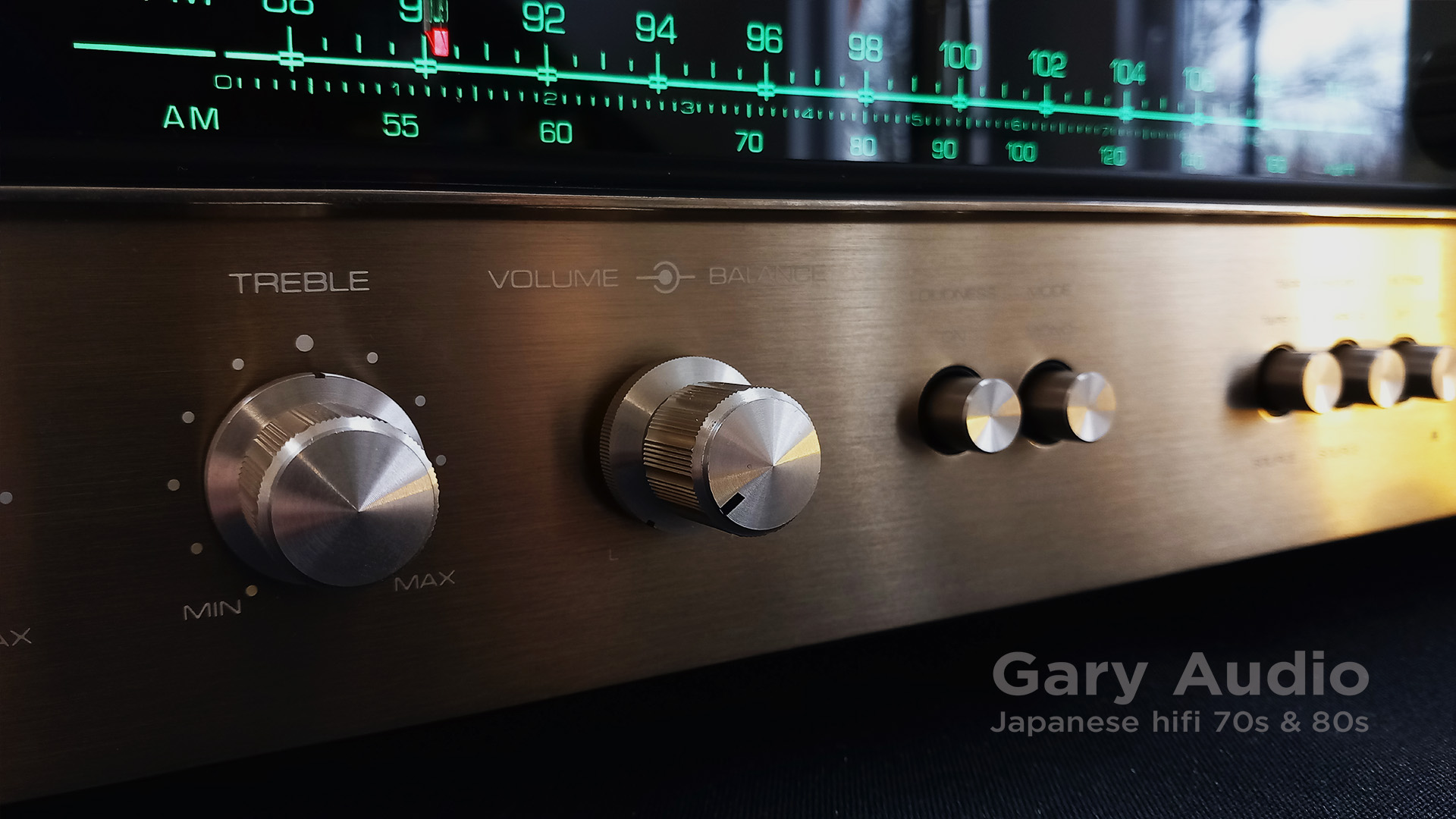

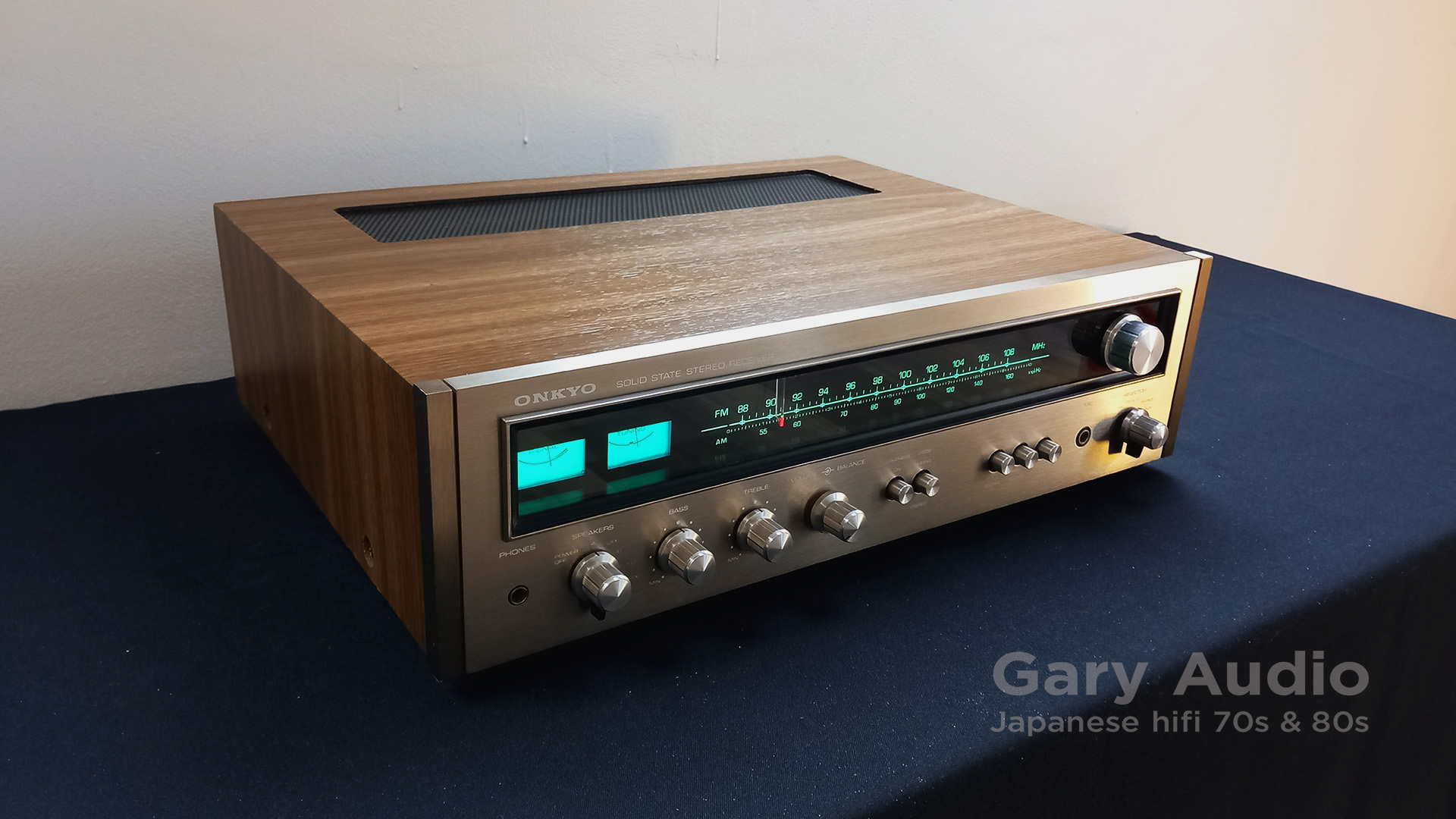

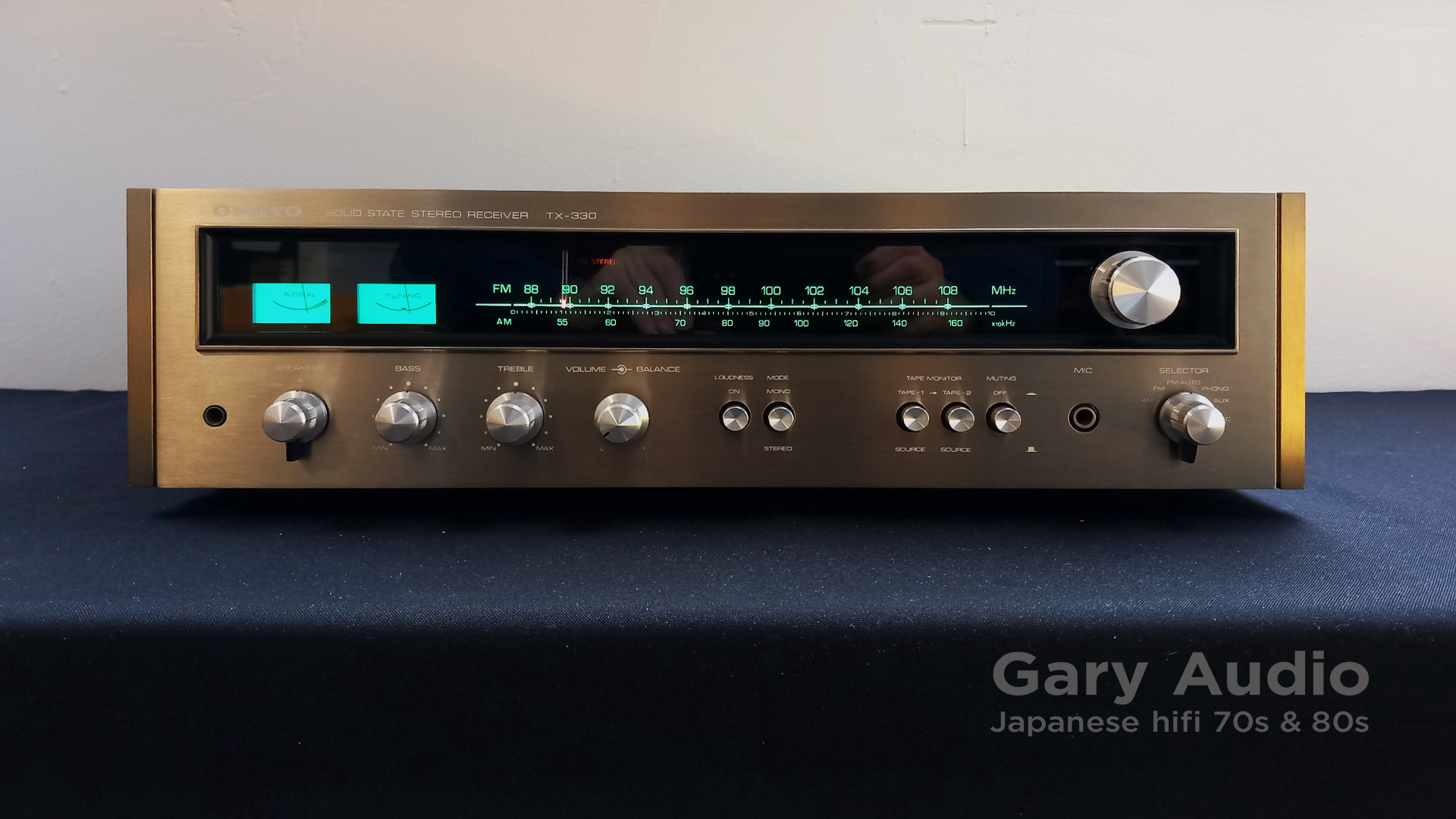

A beautiful and dignified receiver from 1974, the golden area of Japanese home audio production. Silver / champagne front panel, real smoked glass tuner screen and metallic framing make the TX-330 a serious HiFi item. The wooden housing gives the receiver a warm charm. The receiver has a truly outstanding FM sensor with FM Muting feature that gives a smooth scroll on the scale. The amplifier delivers around 17–20+ watts per channel into 8Ω with wide frequency response (approx. 20Hz to 30kHz). High-fidelity, clear, and dynamic sound. Versatile for its time, including Phono (turntable), AUX, and dual tape inputs. This is a heavy weight unit, over 10 kg.

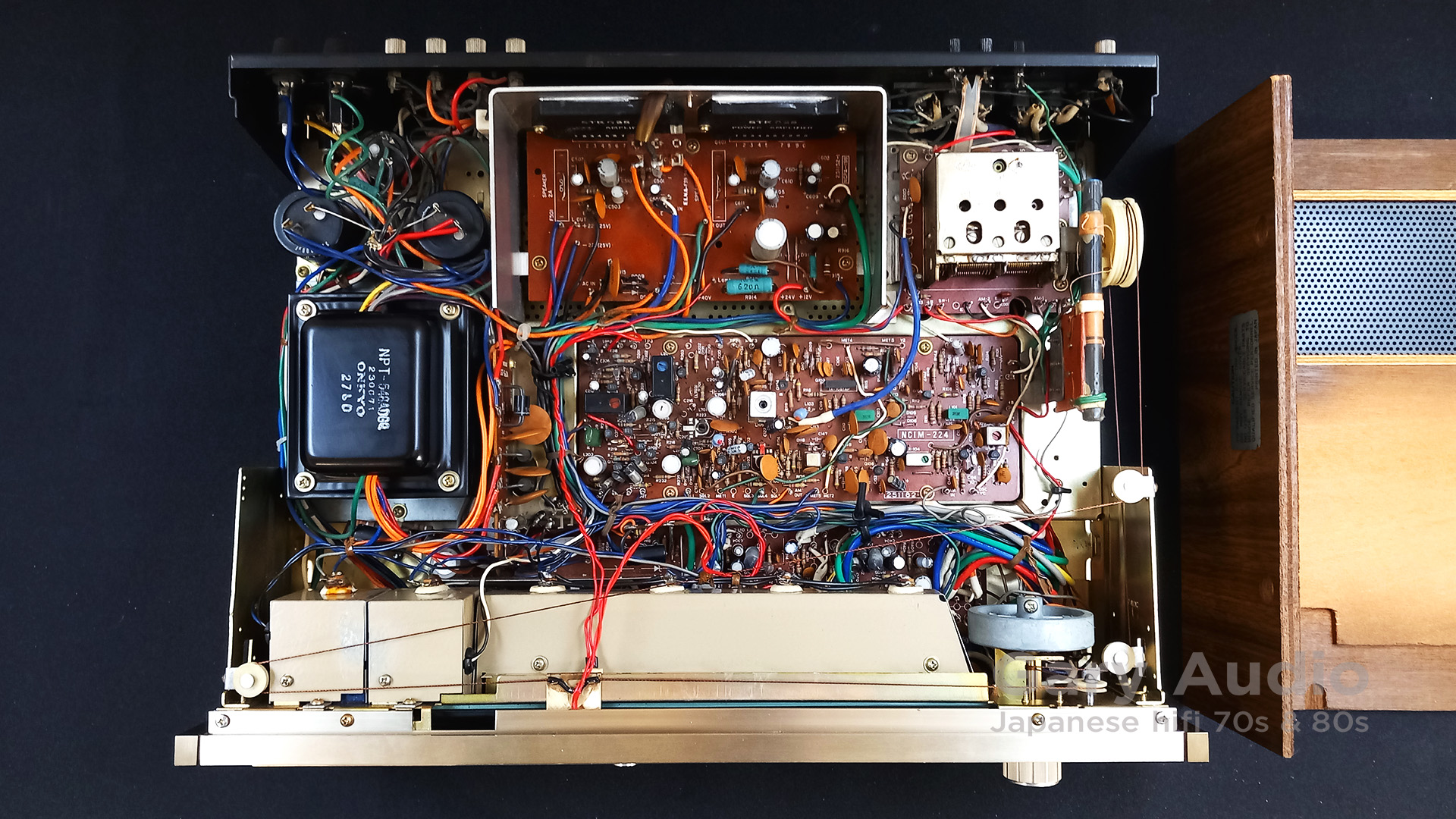

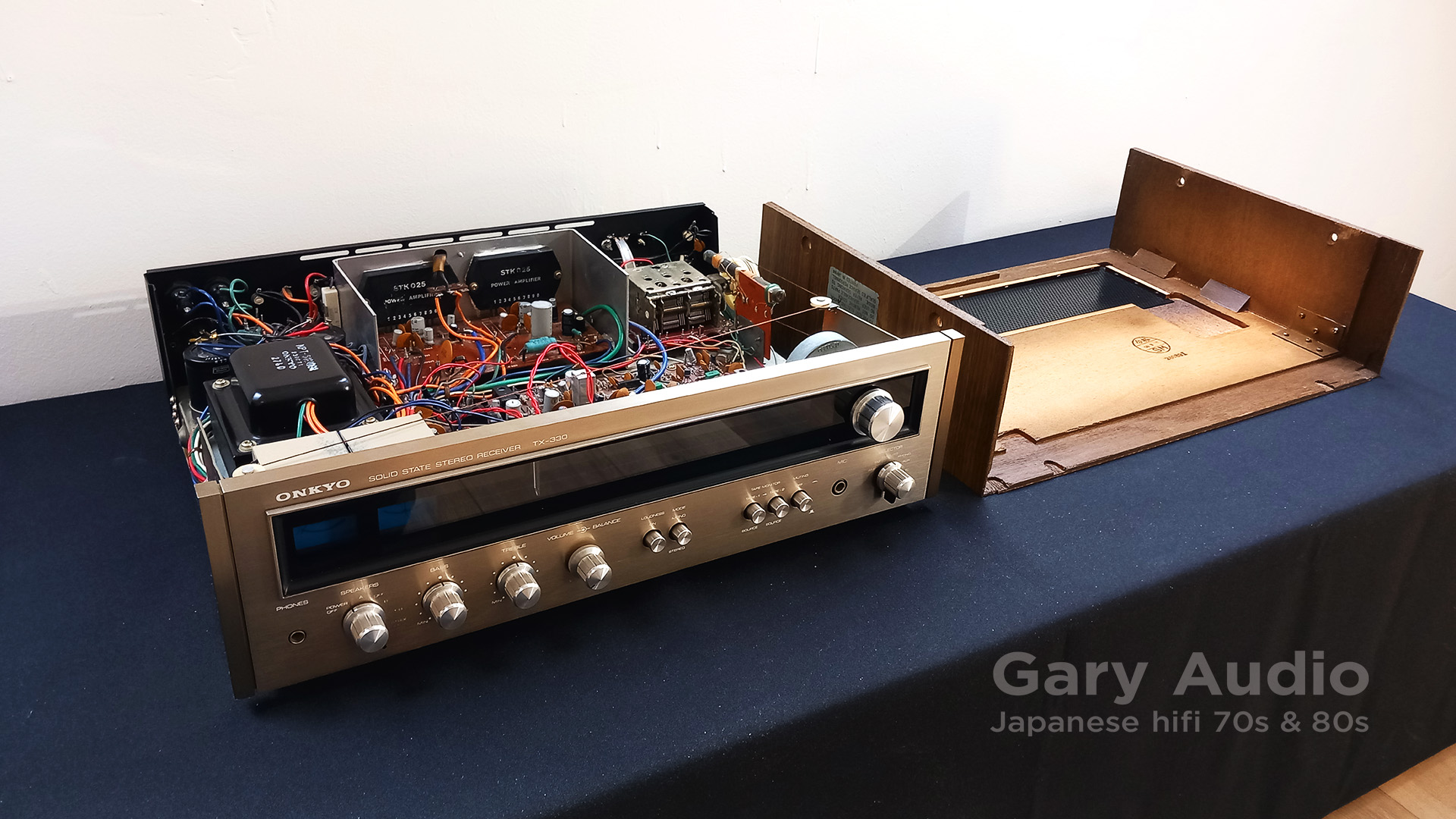

This item is a completely cleaned and tested receiver with all functions promptly working, all parts are original from 1974. International shipping in a hard cardboard box, carefully and safely lined.

Specifications:
Manufacturer: Onkyo
Model: TX-330

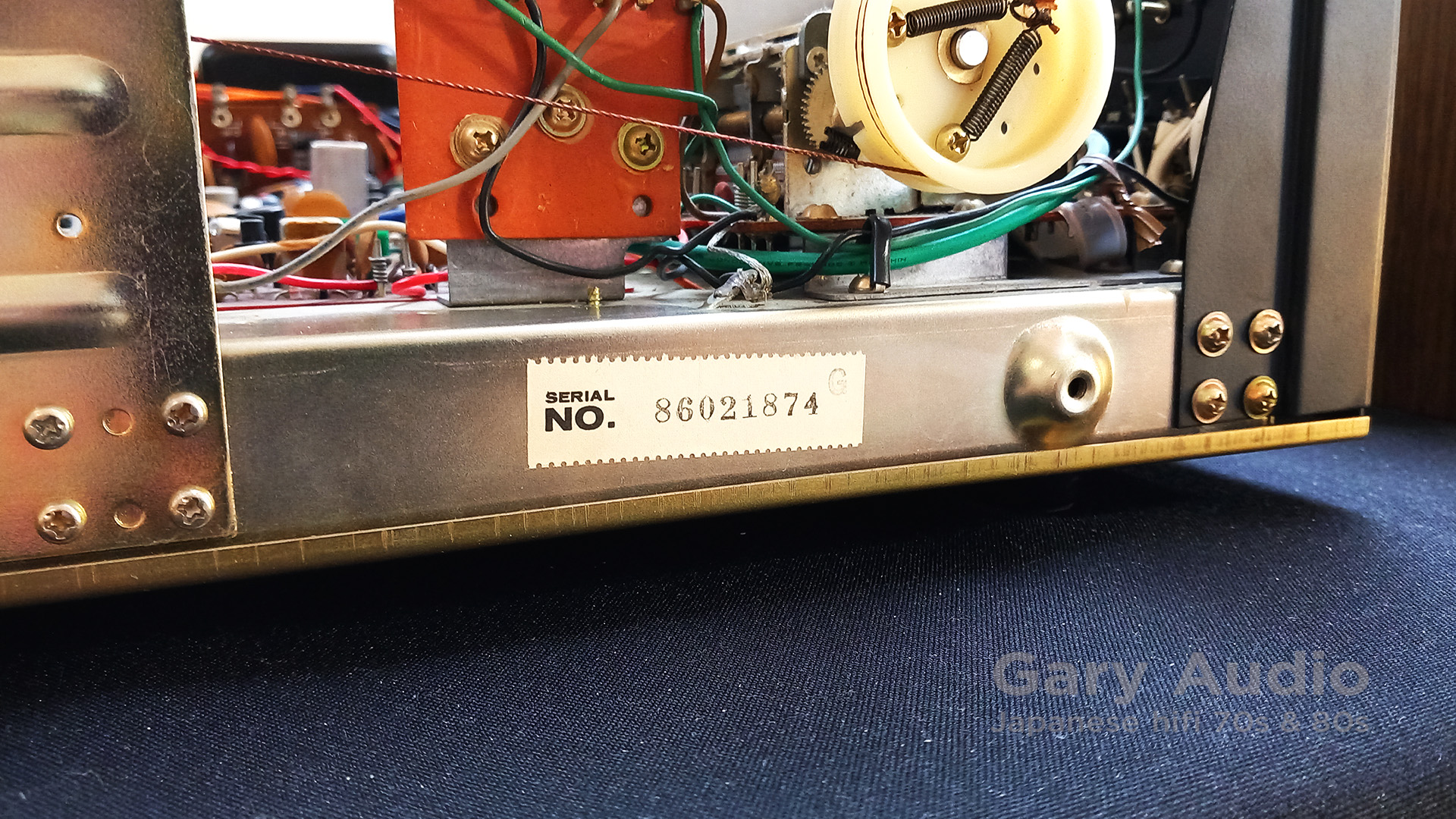

Serian No: 86021874
Type: Receiver
Years of manufacture: 1974 - 1976
Manufactured in: Japan
Color: Silver
Dimensions (WxHxD): 470 x 140 x 375 mm.
Weight: 10.5 kg

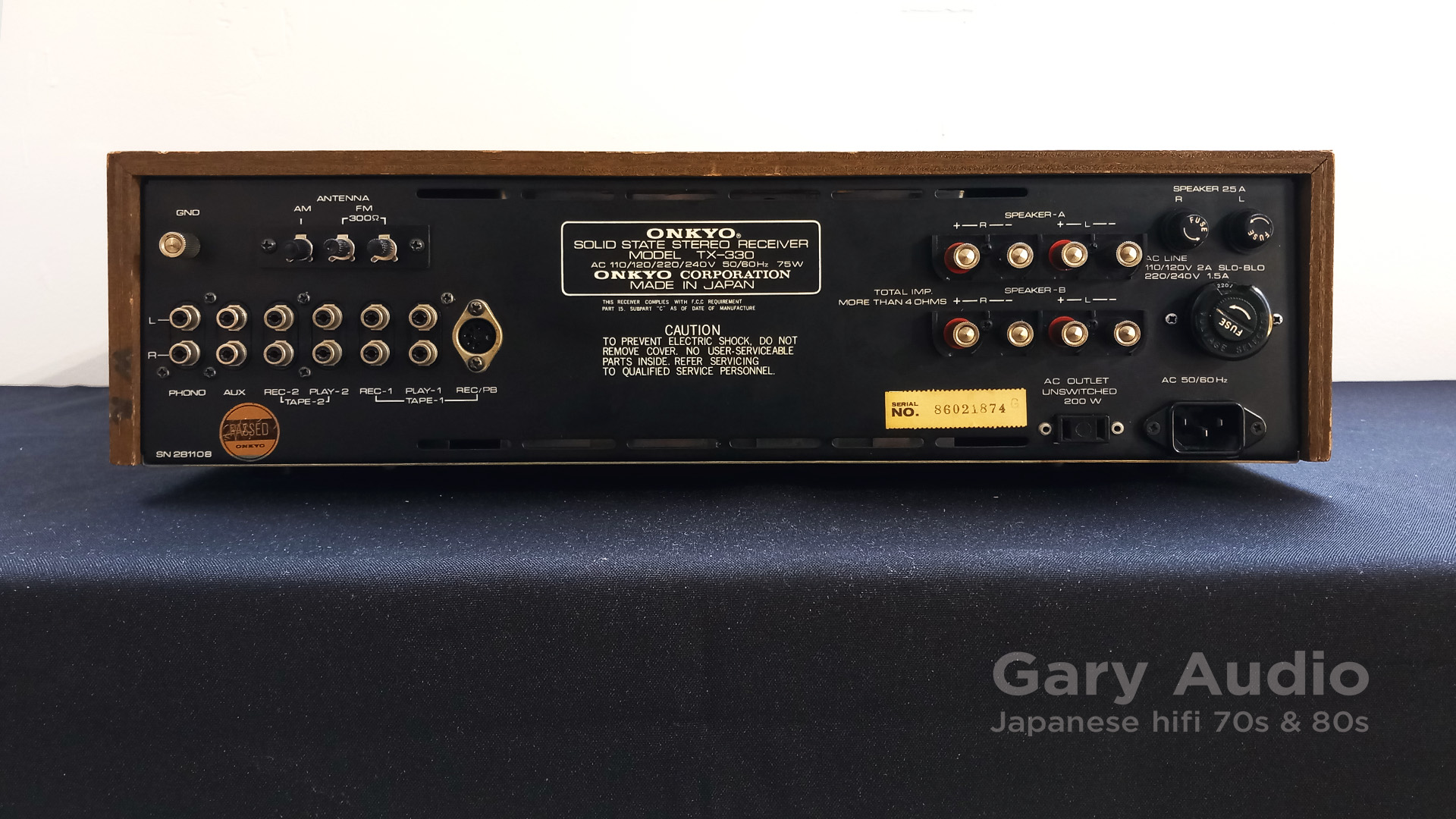

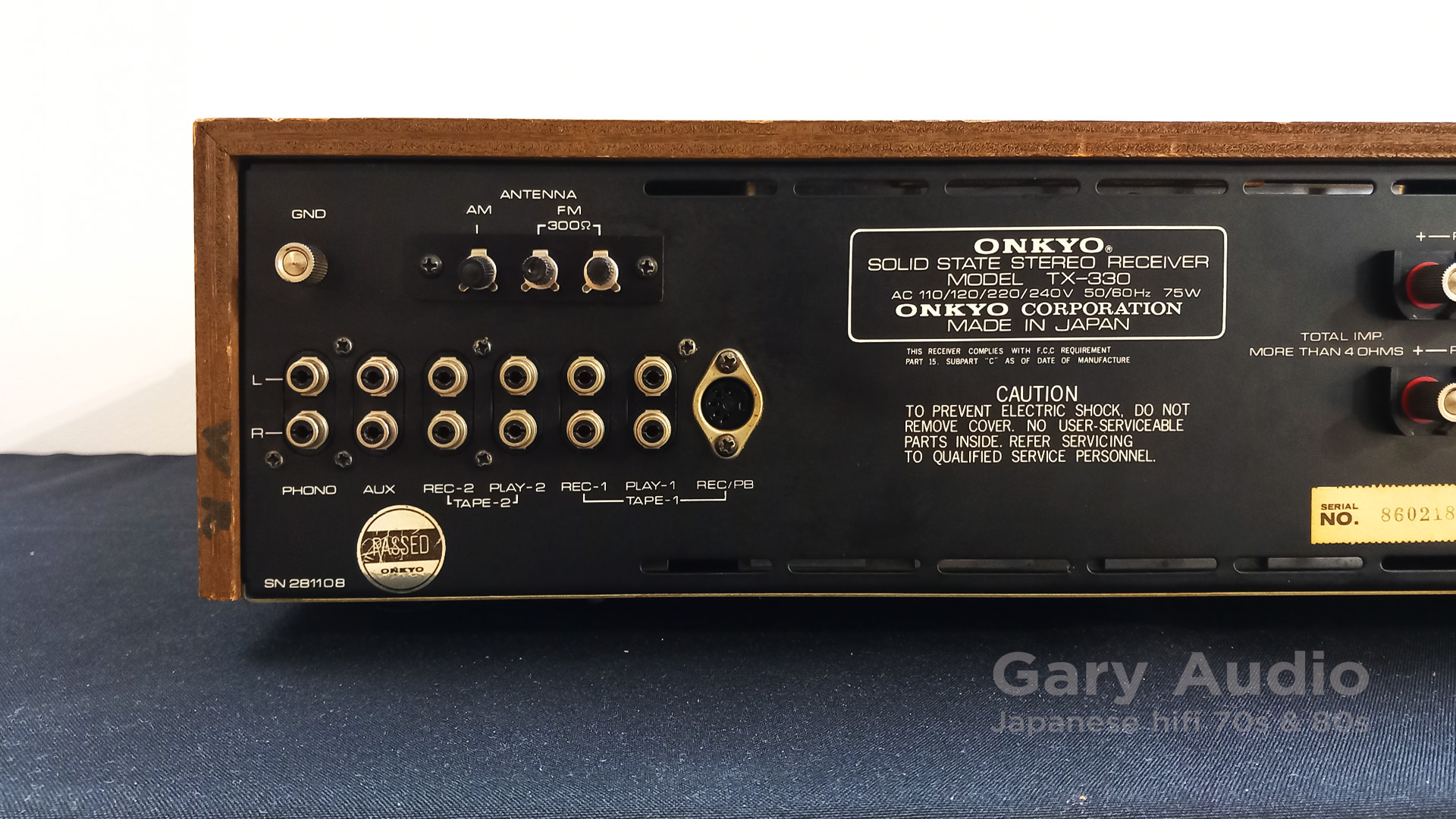

Connections:
Number of inputs:
1 x Phono 2,5mV/50kOhm
1 x AUX 200mV/50kOhm
2 x Tape Play 200mV/50kOhm
2 x Tape Rec 200mV/100kOhm
1 x Mic 4mV/50kOhm
Coaxial FM- antenna connection (75 Ohm)
AM- Antenna connection

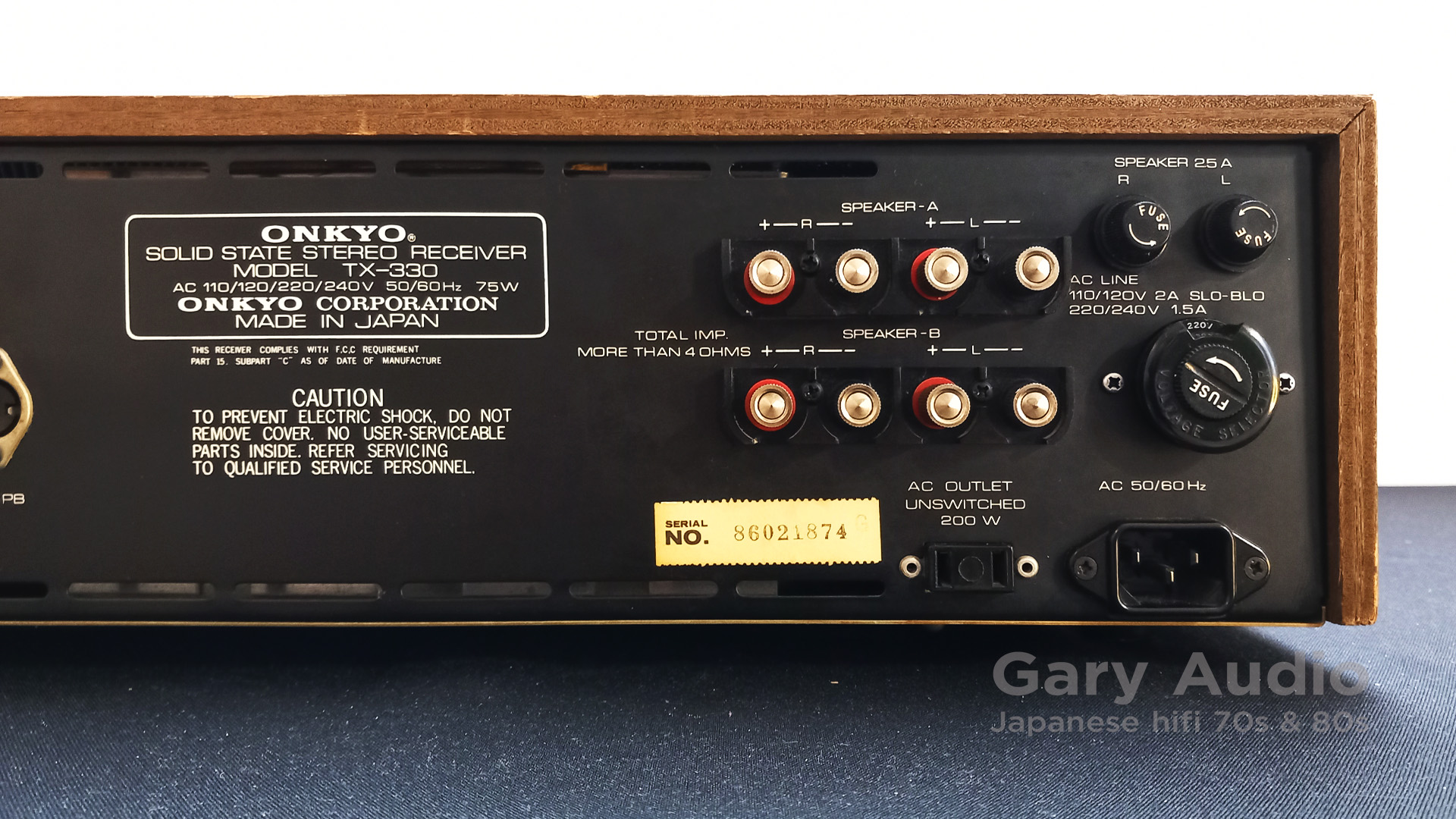

Number of outputs:
2 speaker pairs
Headphone output 6,3 mm jack plug

Technical data:

Amplifier:
Continuous power (at distortion factor)
- 8 Ohm: 2 x 17 W
- 4 Ohm:
Dynamic power
- 8 Ohm:
- 4 Ohm:
Total harmonic distortion: 0.5%
Frequency response: 20 KHz - 30 KHz +- 1 dB
Signal-to-noise ratio: 65 dB (MM), 80 dB (Line)
Tone control:
- Bass: yes (± 10 dB at 100 Hz).
- Treble: yes (± 10 dB at 10 kHz)
Loudness: yes

Tuner:
Reception: FM, MW
Frequencies:
- FM: 88 - 108 MHz
- MW: 550 - 1,605 kHz
Frequency response:
-FM: 30 - 15,000 Hz (± 0.5 dB).
Input sensitivity:
- FM: 1.8 µV (IHF)
- MW: 40 µV Distortion factor:
- FM: 0.2% (mono), 0.5% (stereo).
Signal-to-noise ratio:
- FM: 70 dB
- MW: 40 dB
Channel separation:
FM: 40 dB (400 Hz)
Co-wave selection: 1.5 dB
VHF: 100 dB
MW: 40 dB
AM suppression:
Output level: 50 dB

Special Features:
Microphone mixer

Tags: Onkyo, Receiver, Stereo, 70s, Japan, Vinatge HiFi
